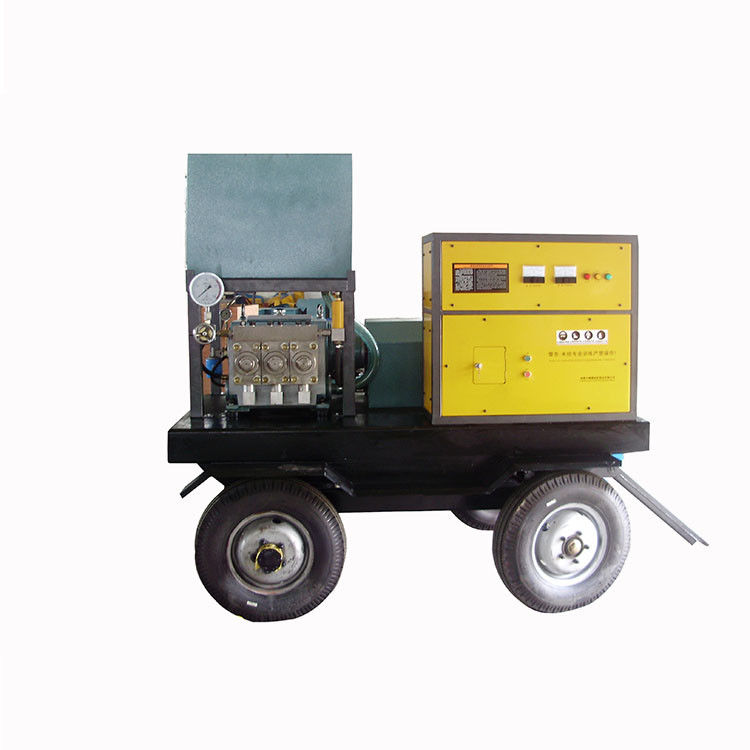

Industrial High Pressure Water Cleaning Machine 500bar Industrial Cleaning Machines

Industrial High Pressure Water Cleaning Machine 500bar Industrial Cleaning Machines

Details:

1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.

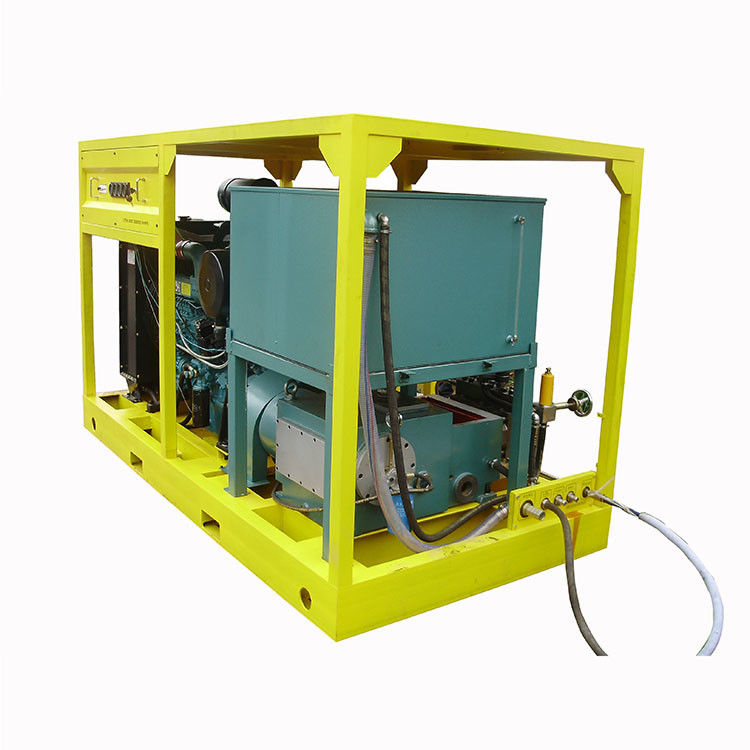

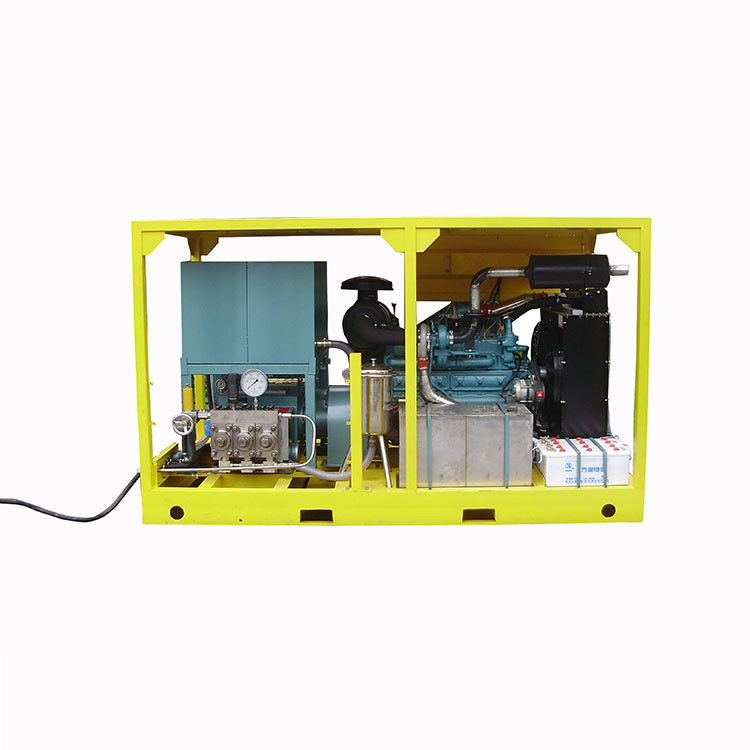

5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.

 Industrial High Pressure Water Cleaning Machine 500bar Industrial Cleaning Machines

Characteristics as below:

Product Description

Industrial High Pressure Water Cleaning Machine is an equipment which is used to clean the surface of objects,the machine with high pressure water jet by means of a power device. It can peel off the dirt ,wash it away to achieve the purpose of cleaning the surface of objects. Because it uses high-pressure water column to clean dirt, high-pressure cleaning is also recognized as the most scientific, economic and environmentally friendly cleaning method in the world compare to the chemical cleaning.

Features

• This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.



  1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.



• Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
• Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.

Applications

1.using in Meat packing Cleaning of grease, fats, blood on conveyors, pipes and drains. With pressure 200bar – 690bar

2.using in Metal processing Mill scale, rust and weld slag from new vessels, tanks and pipe. With pressure 1400bar – 2800bar

3. using in Military Cut & explode mines, decontamination of shells and cutting cordite. Cleaning of machinery & vehicles with the pressure 200bar – 2800bar

4.using in Mining Pre-maintenance cleaning of dump trucks, drag-lines, underground haulage lines and shafts.Unclog plant machinery due to coal, rock dust and oil. With the pressure 300bar – 2800bar

5.using in Municipalities Sewers, drains, pipe lines, sanitation, refuse vechicles and reservoirs. With pressure 200bar – 500bar

The pumps are widely used in oil refinery pipes cleaning, heat exchangers pipes cleaning, ship hull cleaing,oil paitings removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.

(Our factory high pressure jet clean pump is working in Thailand customer site)

Diesel Industrial High Pressure Washers High Pressure Washing Machine For Pipelines Cleaning,This equipment needs to use a backflush nozzle to go inside to the pipes.the nozzles should be smaller than the heat exchangers pipes.

when start the high pressure cleaning machine,the backflush nozzles can go into the pipes itself by the water jet push power.

then the nozzles water jet can clean the inside of the pipes.

More Photos about the cleaning:




Foreign customers :




FAQ

Industrial High Pressure Water Cleaning Machine 30kw 500bar Industrial Cleaning Machines

A: 20 working days for mass production.Q1. What about the lead time?

Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by  sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
