Industrial Hydro Jet High Pressure Water Jet Pumps 500 Bar To 1500 Bar

Industrial Hydro Jet High Pressure Water Jet Pumps 500 Bar To 1500 Bar

Details:

1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy housing.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.

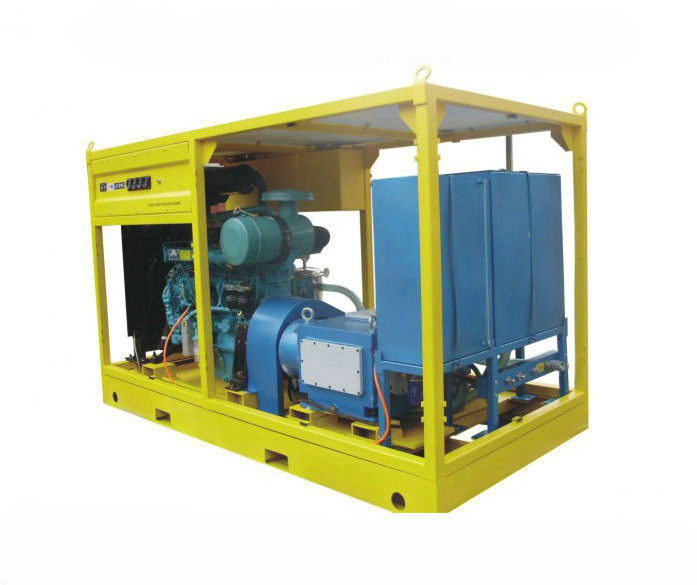

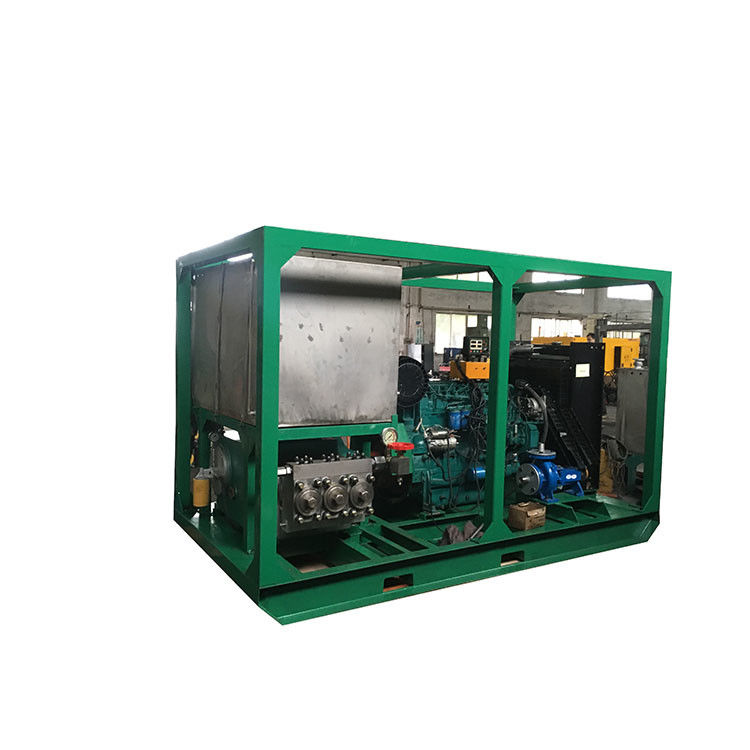

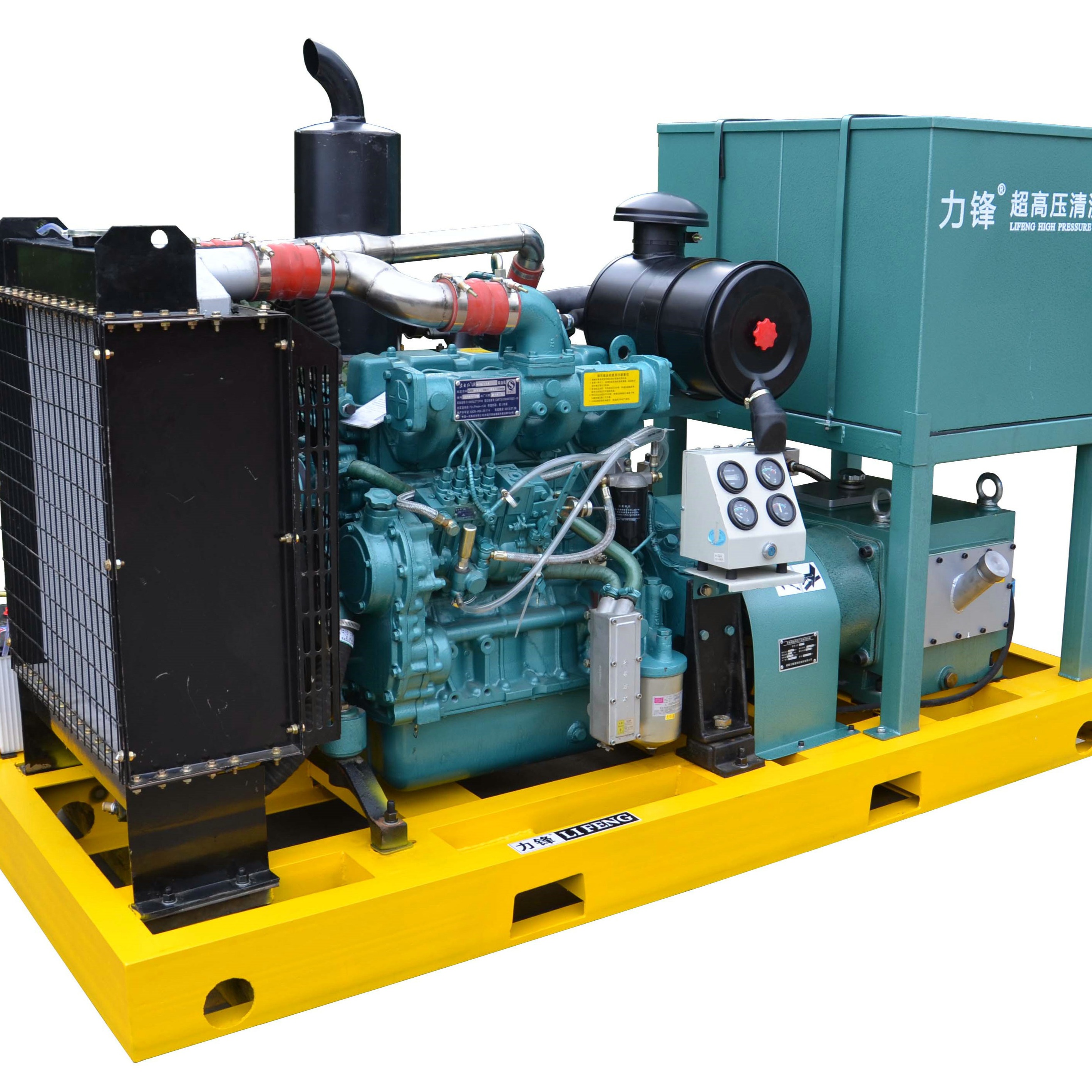

5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.

Features:

1. High pressure triple plunger pump ( Reciprocating plunger pump, Easy maintenance pump head )
Pressure: 500bar to 1500bar
Water flow: 40 LPM to 80 LPM

Industrial Hydro Jet High Pressure Water Jet Pumps 500 Bar To 1500 Bar

Characteristics as below:

Product Description

Industrial High Pressure Water Jet Pump is an equipment which is used to clean the surface of objects,the machine with high pressure water jet by means of a power device. It can peel off the dirt ,wash it away to achieve the purpose of cleaning the surface of objects. Because it uses high-pressure water column to clean dirt, high-pressure cleaning is also recognized as the most scientific, economic and environmentally friendly cleaning method in the world compare to the chemical cleaning.

Features

• This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.



  1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.



• Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
• Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.

Operating process

Start the motor under the spray gun is closed and waiting the motor is working normally, and then begins other operation. At this time, the regulating valve is unloading. Run it for 5 minutes and examine the pump (whether it is normal), the pressure of the oil should between 0.3Mpa and 0.6Mpa.If its sound is normal and discharging media is not obviously fluctuating, we can put the trigger of the spray gun and regulate the pressure regulating valve to the requested cleaning pressure and then lock the nut, use the spray gun to clean towards the objects cleaned by the washer. At this time, spray gun is under the condition of high pressure jet.

When finishing the cleaning work , loose the trigger and unload the spray gun and meanwhile anti-clockwise loose the pressure regulating valve hand wheel and the main set operates under the condition of unloading and then stop.

The purpose of a water pump is to move water not containing suspended solids or particulates. Water pumps handle ground water, potable and salt water. High Pressure water pumps are widely used in water jetting applications.

Water jetting equipment using high pressure water pumps is used to direct high pressure water streams against material to clean or cut it. The streams of water released by water jetting and water blasting equipment is normally 5,000 PSI to 40,000 PSI. In an efficient water jetting system, pressure is vital consideration. Typically, hardened deposits respond better with high pressure water pumps, and softer materials are best removed with lower flows.

Water jetting and water blasting equipment is used for cleaning or demolition of products made of metal, wood, concrete, stone, plastic, glass or other building materials.

Specific components within a water jetting system include abrasive injectors, pressure generators, blast cabinets or booths, water guns, and water tanks. Abrasive injectors can convert a water jetting system into an abrasive blaster. The injection or metering system controls the amount of abrasive pushed into the air stream. In large systems, the delivery system and injection system may be separate components. Pressure generators increase the pressure of the carrier fluid (water or air). Plunger-type intensifier pumps are commonly used to generate high pressure water for water jet cutting, wet or water abrasive blasting and non-abrasive pressure washing or rinsing.

Applications


The pumps are widely used in oil refinery pipes cleaning, heat exchangers pipes cleaning, ship hull cleaing,oil paitings removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.


the below are some of our customers photos who came to our factory:
As a 40 years old manufacturing factory,we have many customers from all over the world,



Applications:
it is widely used in ship cleaning,oil removing,fuel pipeline cleaning in refinery fields.



Foreign cusomers give us comments:




FAQIndustrial High Pressure Water Jet Pumps Hydro jetter sewer jetting machine water jet cleaner for sewer cleaning

Q1. Are you a manufacturing factory or the trading company?
A: we are a 40 years manufacturing factory.

Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by  sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
