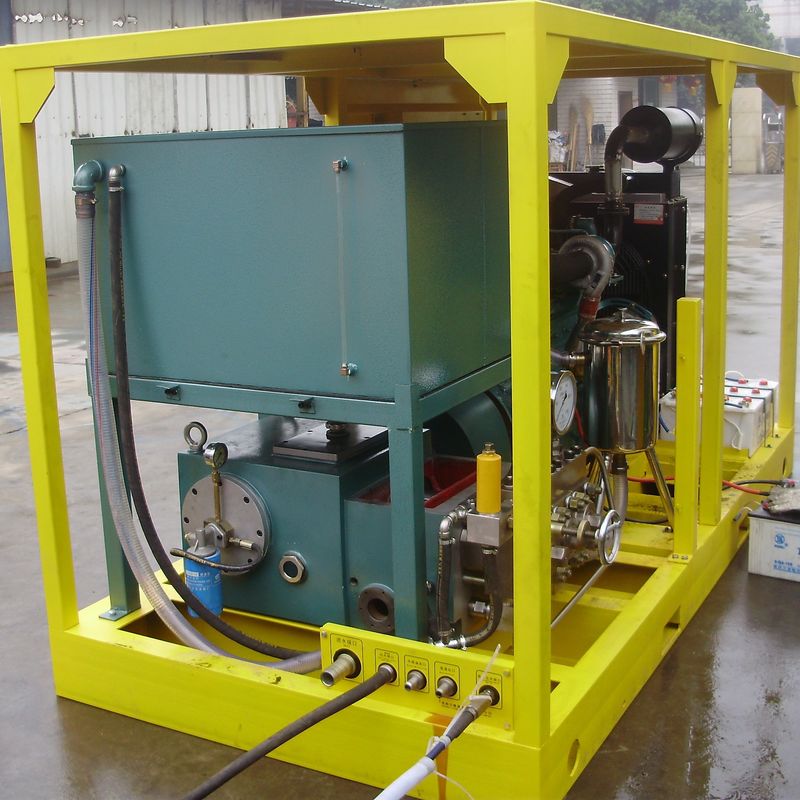

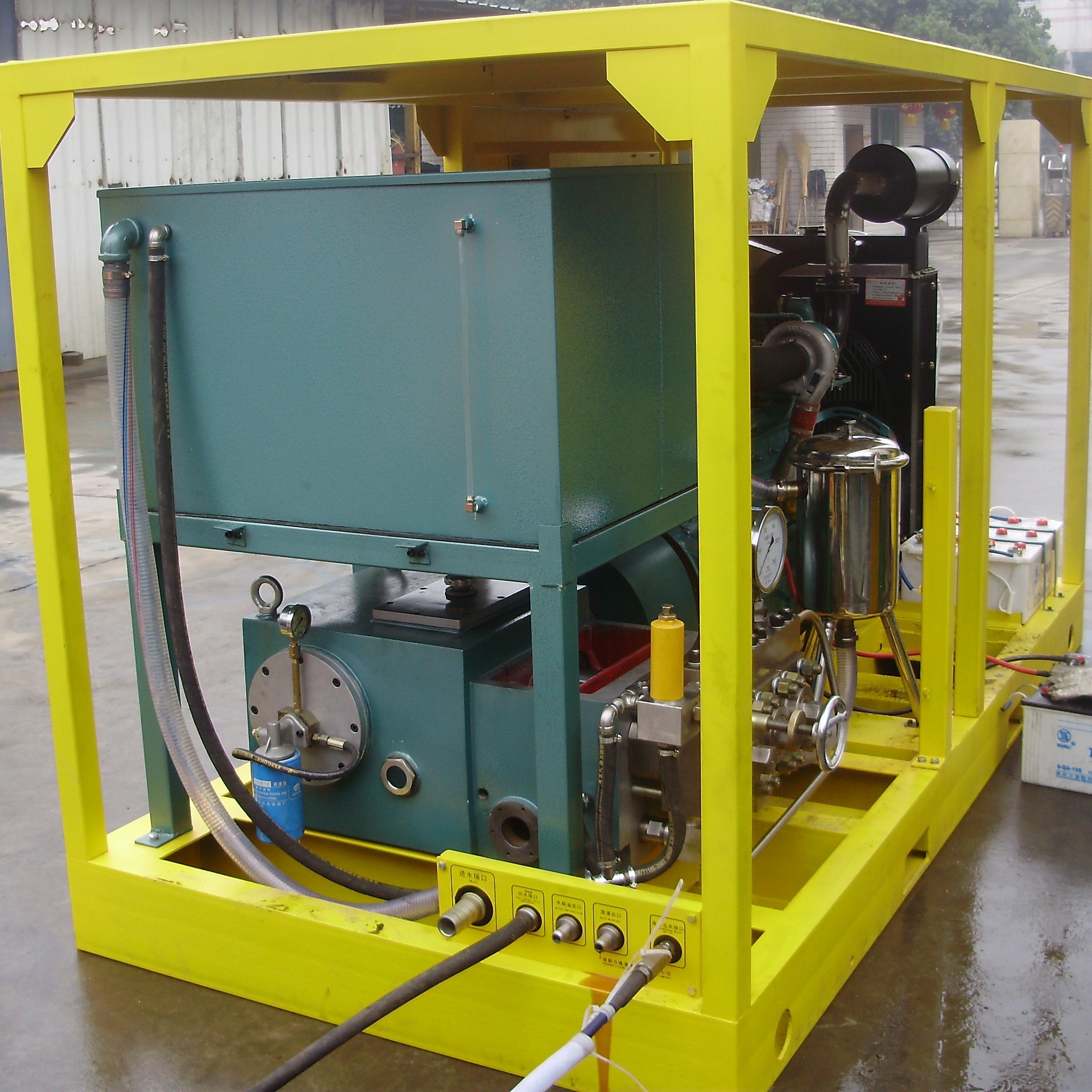

Hydro Blasting Equipment Water Jet Hydro Blaster For Surface Preparation

Hydro Blasting Equipment Water Jet Hydro Blaster For Surface Preparation

Welcome to use LIFENG brand high pressure triplex plunger pump,these series products are designed and manufactured by our compony according to the advanced technology,with the advantages are reasonable structure, stable performance, long life span, simple maintenance and so on. suitability for industrial clean,pressure testing,jet water into the oil field.

main feature:

• Designed for all-in-one transmission case and low speed, reasonable structure,high reliability,can satisfy the long term continuous operation!
• Compulsory lubrication system, effectively reduce power consumption and parts wearing!
• High strength overloaded design, ensure big load requirements.
• Plunger core automatic regulate device
• Independent high pressure cylinder,rate of the stoppage low,simple maintenance.
• Straight-line hydraulic end,avoided the stress concentration, greatly improved the high pressure cylinders.

Installation of the high pressure pump

High-pressure pump power input shaft must be with power output shaft center high equal, Connection mode is coupling.Power input power must be higher than the high pressure pump power rating,1450rpm, the rotary way must agree to the pump’s input end mark.

High pressure pump power input size as right shown, the input shaft coupling inside the area with the joint area should be more than 75%, The manufacturing precision of coupling should comply with the requirements, also should make dynamic balance test,In order to minimize the damage of high pressurepump vibration.

High pressure pump’s four fixing bolts should choose high strength grade which should be tightened when installation.

After the installation of the high pressure pump, turn the coupling with the hand, which should feel consistent, no resistance and squeak& rattle phenomenon.

Pump’s inlet pipe must connect to the tank of water feed, according to the water tank form is shown below.

The purpose of a water pump is to move water not containing suspended solids or particulates. Water pumps handle ground water, potable and salt water. High Pressure water pumps are widely used in water jetting applications.

Water jetting equipment using high pressure water pumps is used to direct high pressure water streams against material to clean or cut it. The streams of water released by water jetting and water blasting equipment is normally 5,000 PSI to 40,000 PSI. In an efficient water jetting system, pressure is vital consideration. Typically, hardened deposits respond better with high pressure water pumps, and softer materials are best removed with lower flows.

Water jetting and water blasting equipment is used for cleaning or demolition of products made of metal, wood, concrete, stone, plastic, glass or other building materials.

Specific components within a water jetting system include abrasive injectors, pressure generators, blast cabinets or booths, water guns, and water tanks. Abrasive injectors can convert a water jetting system into an abrasive blaster. The injection or metering system controls the amount of abrasive pushed into the air stream. In large systems, the delivery system and injection system may be separate components. Pressure generators increase the pressure of the carrier fluid (water or air). Plunger-type intensifier pumps are commonly used to generate high pressure water for water jet cutting, wet or water abrasive blasting and non-abrasive pressure washing or rinsing.


Details:

1. Power end crnkshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2. Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3. Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4. All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.

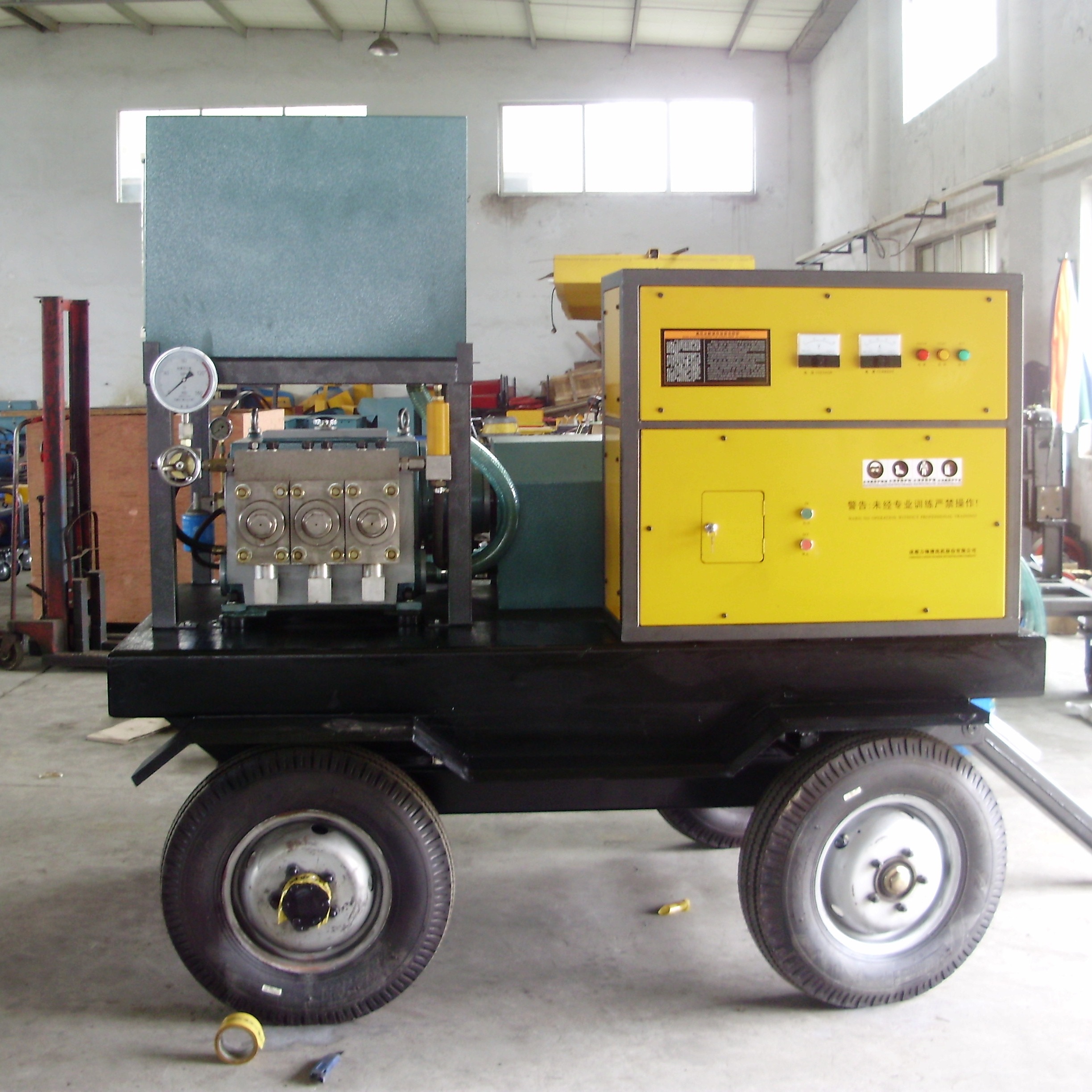

5. For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.

Hydro Blasting Equipment Water Jet Hydro Blaster For Surface Preparation

Characteristics as below:

Before use, it must be checked, and if there are some wearing parts, it should be rechanged. Fixed the joint, in case of loosing.

The high pressure pipes usually in a fixed place, which made from the stainless steel extra high pressure, and installed in a fixed pipe way. When installation, it should match with the limit valve and globe valve, and control box.

Foot control valve is used in the pipelines, containers, rotary kiln of cement plant, sometimes used in as the twin gun switch valve operation. When use the special accessories such as spray boom, rotating nozzle, it should use the foot control valve to realize the control of water jet change. When loose the valve, the water jet.

As a 40 years manufacturing factory,we have many foreign customers who came to our factory to visit.
some of the photos as below:


Applications:

1.using in cleaning the Aluminium plant Hardened bauxite dust on mills, filters, floors, tanks, sumps and sewers. With preesure 350bar – 2800bar

2.Using to wash Aviation Expansion joints, grease, rubber and hydraulic fluids on runways. With pressure 690bar - 1400bar

3. Using to wash the Breweries Yeast, sediments and fermentation residues on vats, pipe and facilities. With pressure 200bar – 2800bar

4. Using to Cement plant Remove dirt, grease and product build up on grates, floor, external piping, bins, walls, hopper cars and

handling equipment. With pressure 200bar – 690bar

5. using to wash Chemical processing Chemicals from boiler tubes, tanks, valves. evaporators, heat exchangers, tube bundles, vessels,

reactors and storage tanks. With pressure 350bar – 2800bar

6. using to Construction Concrete demolishing, exposing steel-bars, cutting concrete and steel bars. With pressure 350bar – 2800bar

7.using to Distilleries Cleaning of heat exchanger, boiler tubes, vats and pipe lines. With pressure 600bar- 2800bar

8.using in washing the Food processing Grease, fats, oil and dough from ovens, mixers, conveyors and facilities. With pressure 200bar – 1000bar

9.using to clean the Foundries Removal of deposits, metal oxidation, ceramic & sand core materials for casting. With pressure 1000bar – 2800bar

10.using in Highway Maintenance Cleaning of grease, vegetation, mud tar, cement or asphalt on vehicles & machinery. Removal of

expansion joints, paint strips and concrete demolishing on road bridges. With pressure 350bar – 2800bar

11.using to clean the Marine & Offshore Removal of marine growth, barnacles, paint and rust on ships, deck, hull and ballast tanks. Oil platforms, storage tanks, boilers, cold cutting, underwater blasting, pipe cleaning, paint and rust. With the pressure 500bar – 2800bar

it is widely used in ship cleaning,oil removing,fuel pipeline cleaning in refinery fields.


some foreign customers give us comments below:





FAQ

Hydro Blasting Equipment Water Jet Hydro Blaster For Surface Preparation

Q1. What about the lead time?
A: 20 working days for mass production.

Q2. Do you have any MOQ limit for the product order?
A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by  sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
