Industrial High Pressure Water Jet Cleaner High Pressure Washing Machine

Industrial High Pressure Water Jet Cleaner High Pressure Washing Machine

Standard and custom high-pressure Hydro water units are built with Tritan triplex or quintuplex pumps. Quintuplex and triplex pumps are positive-displacement reciprocating pumps that are configured with three or five plungers. High pressure water pumps used in high pressure water blasting and water jetting operations.

These hydro laser high-pressure water pumps can be driven by electric motor, diesel, or gasoline engine. A complete system package can be ready to easily take care of your next difficult cleaning job.

Optional Equipment:
Hydro Dump Gun - Constructed Entirely of Stainless Steel.
Jet Tips - Stainless Steel: Two (2) Straight Round Pattern or Two (2) Flat Fan Pattern.
Discharge Gauge.
Relief Valve - Stainless Steel Construction and Adjustable.
Discharge Hose - 50 ft Section

Units are mounted on trucks, trailers, or skids.

A variety of accessories are available to adapt to specialized cleaning requirements. Hoses, Cleaning Guns, Jet Cleaning Heads: Single Orifice, Multi Orifice, Flat Fan, Self-Propelled

Fulfill a multitude of cleaning applications:
Water Jetting, Water-Chemical Cleaning, Water-Sand Cleaning, Water Power Sewer Cleaning & Flushing

Material that can be removed quickly, efficiently and cheaply with a Hydro Laser: Paint, Grease, Sludge, Slage, Core Sand from Castings, Ceramic Residue, Asphalt, Hydrocarbon Residue, Acid Residue, Mineral Build-Up, Rust, Marine Growth, Polymerized Material, Latex, Scale from Steel, Oil, Chemical Residue, and more...

Details:

1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.
5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.

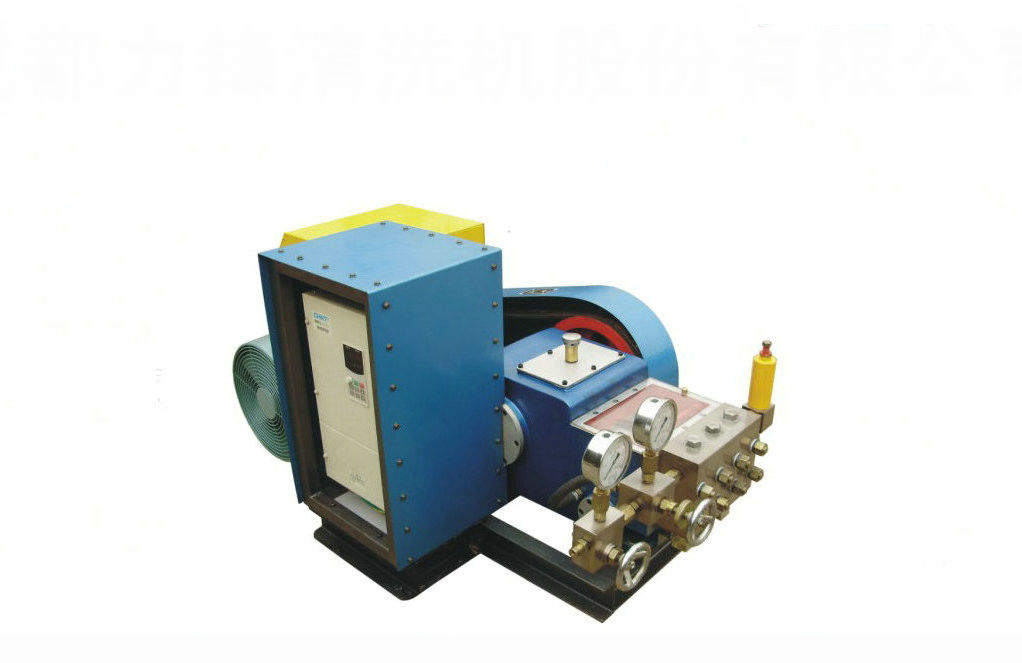

Industrial High Pressure Water Jet Cleaner High Pressure Washing Machine


Characteristics as below:


Product Description

Industrial Water Jet Cleaning Machine is an equipment which is used to clean the surface of objects,the machine with high pressure water jet by means of a power device. It can peel off the dirt ,wash it away to achieve the purpose of cleaning the surface of objects. Because it uses high-pressure water column to clean dirt, high-pressure cleaning is also recognized as the most scientific, economic and environmentally friendly cleaning method in the world compare to the chemical cleaning.

Features

• This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.

  1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.


• Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
• Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.

Specific components within a water jetting system include abrasive injectors, pressure generators, blast cabinets or booths, water guns, and water tanks. Abrasive injectors can convert a water jetting system into an abrasive blaster. The injection or metering system controls the amount of abrasive pushed into the air stream. In large systems, the delivery system and injection system may be separate components. Pressure generators increase the pressure of the carrier fluid (water or air). Plunger-type intensifier pumps are commonly used to generate high pressure water for water jet cutting, wet or water abrasive blasting and non-abrasive pressure washing or rinsing.

Standard and custom high-pressure Hydro Laser units are built with Tritan triplex or quintuplex pumps. Quintuplex and triplex pumps are positive-displacement reciprocating pumps that are configured with three or five plungers. High pressure water pumps used in high pressure water blasting and water jetting operations.

These hydro laser high-pressure water pumps can be driven by electric motor, diesel, or gasoline engine. A complete system package can be ready to easily take care of your next difficult cleaning job.

Applications
1.using in cleaning the Aluminium plant Hardened bauxite dust on mills, filters, floors, tanks, sumps and sewers. With preesure 350bar – 2800bar

2.Using to wash Aviation Expansion joints, grease, rubber and hydraulic fluids on runways. With pressure 690bar - 1400bar

3. Using to wash the Breweries Yeast, sediments and fermentation residues on vats, pipe and facilities. With pressure 200bar – 2800bar

4. Using to Cement plant Remove dirt, grease and product build up on grates, floor, external piping, bins, walls, hopper cars and
handling equipment. With pressure 200bar – 690bar

5. using to wash Chemical processing Chemicals from boiler tubes, tanks, valves. evaporators, heat exchangers, tube bundles, vessels,
reactors and storage tanks. With pressure 350bar – 2800bar
The pumps are widely used in oil refinery pipes cleaning, heat exchangers pipes cleaning, ship hull cleaing,oil paitings removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.




FAQ


Industrial High Pressure Water Jet Cleaner High Pressure Washing Machine


A: 20 working days for mass production.Q1. What about the lead time?

Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by  sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
